Scroll-X Series : Whisper Quiet Technology
Westair are pleased to introduce the latest in advanced compressed air technology. The new oil injected silent Scroll-X series is whisper quiet, energy saving, direct drive, vibration free and is extremely reliable with minimal moving parts and long duty cycles.
Long Duty Cycles
Unlike reciprocating technology with many moving parts, the Scroll-X Scroll Compressor has one orbiting scroll and one fixed scroll. The orbiting scroll is coupled to the crankshaft in orbit rather than rotated.
The orbiting motion creates a series of air pockets traveling between the two scroll plates.On the outer portion of the scroll, the pocket draws in the air then moves it to the center of the scroll, where it’s discharged.
As the air moves in the increasing smaller inner pocket, the pressure increases to the desired discharged pressure. The Scroll-X is oil injected which lubricates and regulates the temperature of the scroll which enables long running duty cycles to be achieved.
Features
- 3–15 kW
- 13 – 62 CFM
- 8 bar pressure
- Direct drive 1:1 ratio
- Energy saving intelligent Micro controller
- Schneider electrical components
- SKF Bearings in airend and motor
- Overload and temperature safety protection
- Large oversized coolers designed for Australian conditions
- Seamless steel used on all oil pipes
- Standard 1 year warranty
Technical Specifications

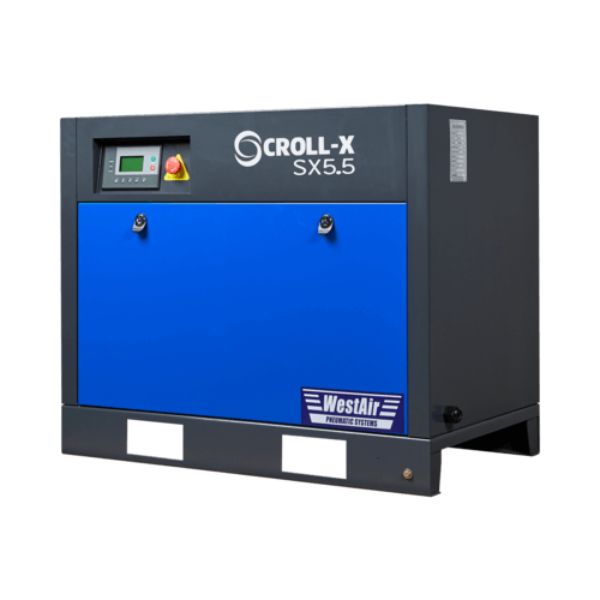

Scroll-X Base Mount Unit
| Model | Power (kW) |
Power (HP) |
Capacity (CFM) |
Power Supply | Dimensions (mm) |
Weight (kg) |
Noise Level (dBa) |
|---|---|---|---|---|---|---|---|
| SX-3S | 3 | 4 | 13 | 240V | 850 x 550 x 700 | 170 | 57+3 |
| SX-3 | 3 | 4 | 13 | 415V/50Hz | 850 x 550 x 700 | 170 | 57+3 |
| SX-4 | 4 | 5.5 | 18 | 415V/50Hz | 850 x 550 x 700 | 170 | 57+3 |
| SX-5.5 | 5.5 | 7.5 | 24 | 415V/50Hz | 1000 x 600 x 750 | 210 | 59+3 |
| SX7.5 | 7.5 | 10 | 31 | 415V/50Hz | 1000 x 600 x 750 | 220 | 59+3 |
| SX15 | 15 | 20 | 62 | 415V/50Hz | 1200 x 750 x 950 | 420 | 62+3 |
Scroll-X Tank Mounted Unit
| Model | Power (kW) |
Power (HP) |
Capacity (m³/min) |
Power Supply |
Tank Size (L) |
Dimensions (mm) |
Weight (kg) |
Noise Level (dBa) |
|---|---|---|---|---|---|---|---|---|
| SX3S-T | 3 | 4 | 13 | 240V |
200 |
850 x 550 x 1280 | 210 | 57+3 |
| SX3-T | 3 | 4 | 13 | 415V/50Hz | 200 | 850 x 550 x 1280 | 210 | 57+3 |
| SX4-T | 4 | 5.5 | 18 | 415V/50Hz | 200 | 850 x 550 x 1280 | 210 | 57+3 |
| SX5.5-T | 5.5 | 7.5 | 24 | 415V/50Hz | 270 | 1000 x 600 x 1450 | 290 | 59+3 |
| SX7.5-T | 7.5 | 10 | 31 | 415V/50Hz | 270 | 1000 x 600 x 1450 | 300 | 59+3 |
| SX15-T | 15 | 20 | 62 | 415V/50Hz | 270 | 1200 x 750 x 1650 | 480 | 62+3 |

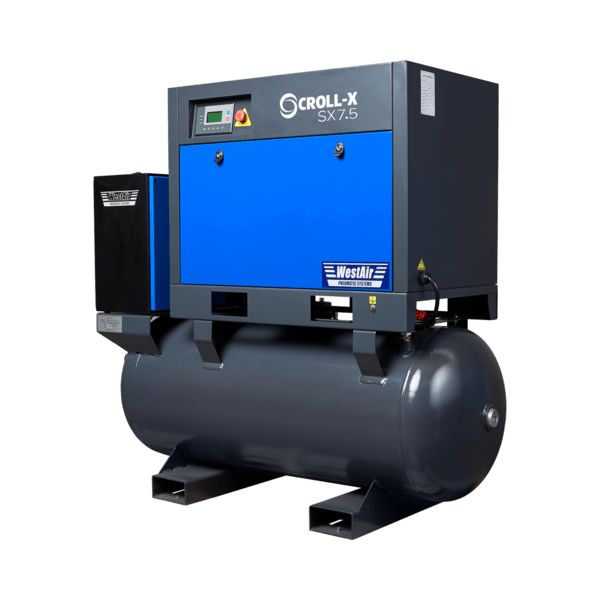

Scroll-X All in One Unit
| Model | Power (kW) |
Power (HP) |
Capacity (m³/min) |
Power Supply |
Tank Size (L) |
Dimensions (mm) |
Weight (kg) |
Noise Level (dBa) |
|---|---|---|---|---|---|---|---|---|
| SX5.5-TD | 5.5 | 7.5 | 24 | 415V/50Hz |
320 |
1600 x 800 x 1450 | 330 | 59+3 |
| SX7.5-TD | 7.5 | 10 | 31 | 415V/50Hz | 320 | 1600 x 800 x 1450 | 330 | 59+3 |
| SX15-TD | 15 | 20 | 62 | 415V/50Hz | 320 | 1800 x 970 x 1600 |
520 |
62+3 |
