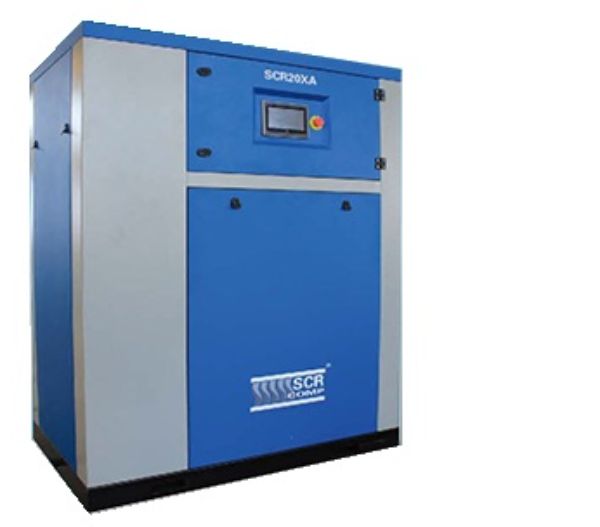

SCR Oil Free Scroll Air Compressors 3.7kW – 30kW
The SCR Oil Free Scroll series uses the latest in advanced oil free technology to deliver high quality 100% oil free compressed air to suit any application requiring the purest of air. They are commonly used around the world in the food, beverage, dental, medical, pharmaceutical, laboratories, nitrogen generation, painting and printing industries.
All Westair-SCR oil-free XA series scroll compressors use the internationally recognised Iwata scroll airends with sequential multi-stage compression to optimise energy savings.
Unique Benefits of the Westair-SCR Oil-Free Range:
- World Class Performance ! The IWATA airends used are global leaders in oil-free scroll technology.
- ISO Class 0 Certified Certified 100% Oil-Free Air Compression
- Energy Saving Multi-Stage Design Stages start-stop to meet air demand (except SCR5XA)
- The Best for Less Industrial quality without the premium price!
- Environmentally Friendly No used oils or Lubricants to dispose of
- Built for Australian Conditions Over-sized reliable coolers
Features
- Models available in 11-127 cfm (0.3 – 3.5 m3/min)
- Pressures: 8 Bar or 10 Bar (116psi or 145 psi)
- 100% oil free compressed air
- High efficiency Iwata airend
- Stainless steel piping
- Oversized coolers for high ambient running
- ISO Class 0 certified
Advantages
- Energy savings of up to 60%
- Energy efficient design
- Ultra Quiet Operation
- Low vibration levels
- Multiple safety functions
- Backup function to prevent loss of air
- Low Maintenance
SCR Scroll – How It Works

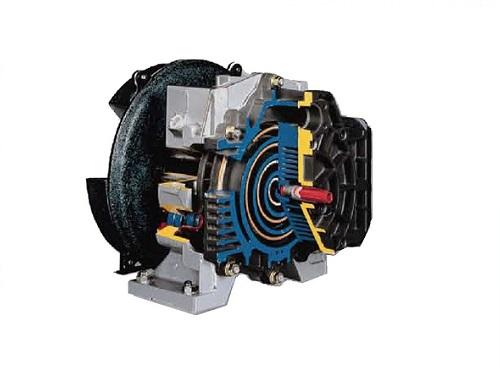

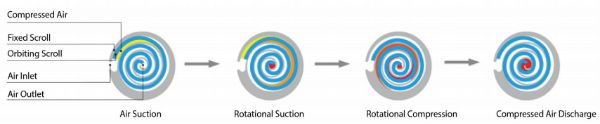

The airend has one orbiting scroll and one fixed scroll. The orbiting scroll is coupled to the crankshaft in orbit rather than rotated. The orbiting motion creates a series of air pockets traveling between the two scroll plates.
On the outer portion of the scroll, the pocket draws in the air then moves it to the centre of the scroll, where it’s discharged.As the air moves in the increasing smaller inner pocket, the pressure increases to the desired discharged pressure.
SCR Scroll – Specifications
| Model | Power (kW) |
Power (HP) |
Capacity (m³/min) |
Capacity (CFM) |
Pressure (bar) |
Air Outlet Size | Dimensions (mm) |
Weight (kg) |
Noise Level (dBa) |
|---|---|---|---|---|---|---|---|---|---|
| SCR5XA-8 | 3.7 | 5 | 0.40 | 14 | 8 | 3/4" | 110 x 65 x 98 | 230 | 58 |
| SCR10XA-8 | 7.5 | 10 | 0.8 | 28 | 8 | 1" | 120 x 65 x 160 | 320 | 62 |
| SCR15XA-8 | 11 | 15 | 1.2 | 42 | 8 | 1" | 135 x 120 x 80 | 450 | 65 |
| SCR20XA-8 | 15 | 20 | 1.6 | 56 | 8 | 1" | 80 x 120 x 180 | 650 | 68 |
| SCR30XA-8 | 22 | 30 |
2.6 |
92 | 8 | 1" | 120 x 140 x 150 | 900 | 70 |
| SCR40XA-8 | 30 | 40 | 3.5 | 127 | 8 | 1" | 120 x 140 x 180 | 1300 | 72 |
